ACVU9 FPGA SoM with AMD Virtex US+ XCVU9P
Brand: Alinx
EIC Product Code: ACVU9 V1.0
The ACVU9 Core Board, featuring a Virtex UltraScale+™ XCVU9P and high-speed DDR4, is engineered for high-performance data acceleration and network processing.
Product Description
The ACVU9 Core Board, featuring a Virtex UltraScale+™ XCVU9P and high-speed DDR4, is engineered for high-performance data acceleration and network processing.
Applications
● Compute Acceleration
● Machine Learning and AI
● Network Acceleration
● Wired Communications
● 5G Baseband
● Radar
● Test and Measurement
● Emulation and Prototyping
Key Features
- ● AMD/Xilinx Virtex Ultrascale+™ XCVU9P:
◆ 16nm FinFET FPGA fabric
◆ System Logic Cells 2586K

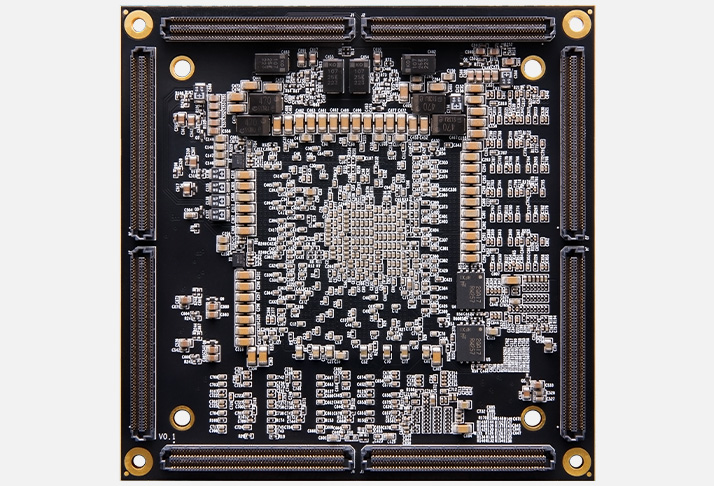

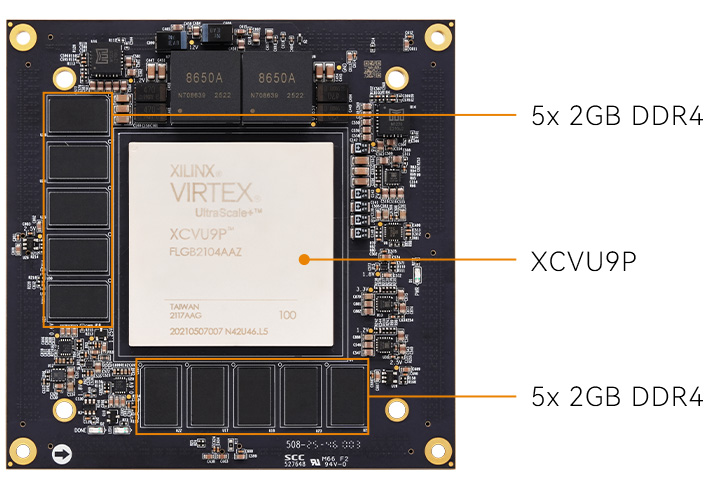

◆ DSP Slices 6840● Pluggable module with 8 x Samtec board-to-board connectors - ● 2 x 10GB (80bit) DDR4 SDRAM

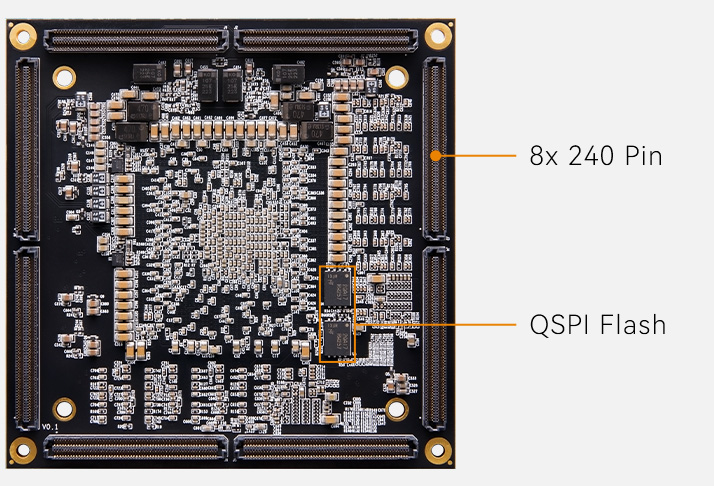

● 256MB QSPI Flash
● transceivers
◆ 76 x GTY, up to 28.21 Gbps● User I/Os
◆ 377 FPGA HP IO● Work temperature range of -40°C to +85°C
● 12V single supply
● Dimension: 106 x 106mm form factor
Module Features

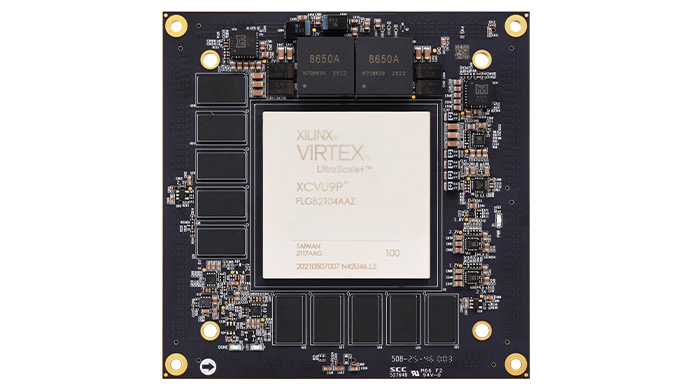

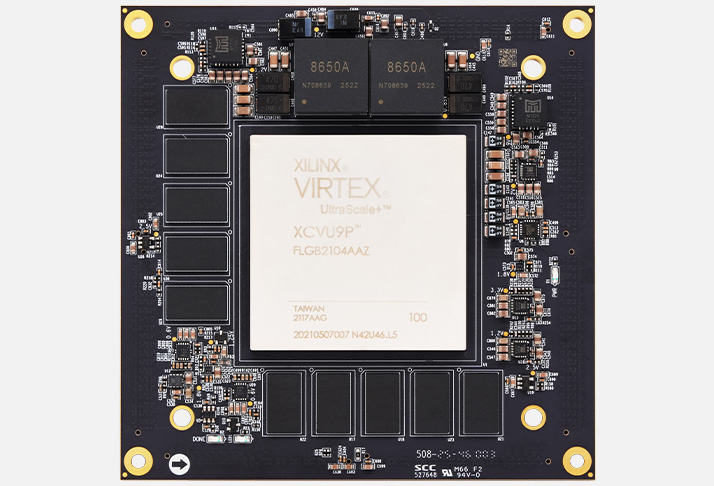

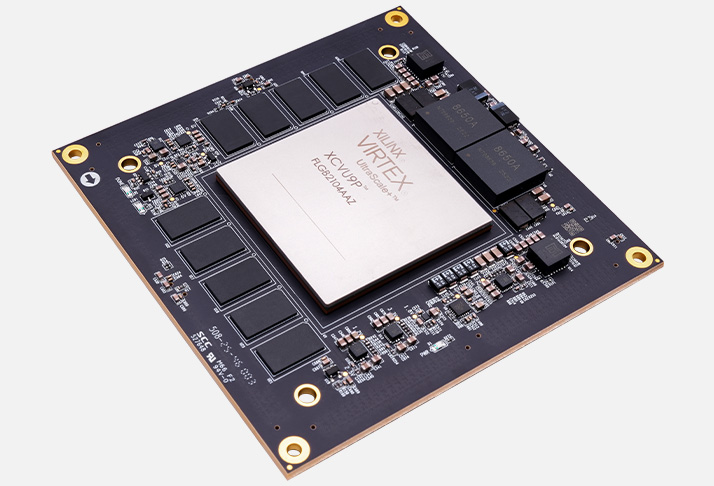

Featuring the AMD/Xilinx Virtex Ultrascale+™ XCVU9P-3FLGB2104
* If you want to design a base board based on this Kintex Ultrascale+™ FPGA System-on-Module, you need to purchase ADM6-60-01.5-L-4-2-A-TR high-speed Board to Board Connectors, 240 Pins, you also need to purchase Heatsink Kit, the Heatsink Kit is an optimal cooling solution for ALINX FPGA and modules – it is low-profile and covers the whole module surface.
* We have Virtex Ultrascale+™ development boards AXVU9G that uses this Virtex Ultrascale+™ module, to get started with development straight out of the box.
Please check the Relevant Products at the bottom of the page and click to learn more details.
What's Inside the Box
ALINX AMD Xilinx Virtex Ultrascale+™ XCVU9P FPGA System-on-Module/SoM
| Virtex Ultrascale+™ SoM | 1 |
|---|
Product Matrix
| Product Model | Preferred Model | FPGA Devices | DDR4 SDRAM | QSPI Flash | GTY 28.21Gbps | Temp. Range | USD Price |
|---|---|---|---|---|---|---|---|
| ACVU9 | XCVU9P-3FLGB2104 | 20 GB | 256 MB | 76 | -40°C~+85°C | 8986 | |
| ACVU13 | √ | XCVU13P-2FHGB2104I | 20 GB | 256 MB | 76 | -40°C~+85°C | 11981 |
1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.
We offer complete documentations and a lot of demos and tutorials.
Please contact us should you have any need.
