Zynq UltraScale+ RFSoC

ACRF49 SoM with AMD Zynq™ US+ RFSoC XCZU49DR

EIC Product Code: ACRF49

The ACRF49 System-on-Module (SoM) integrates AMD/Xilinx Zynq™ UltraScale+™ RFSoC ZU49DR with high-speed DDR4 SDRAM, dual 512Mbit Quad-SPI Flash chips, and essential peripherals, forming a complete embedded processing platform for high-performance RF applications.

Availability: in stock
$16,688 [Excluding VAT]
Quantity

Product Description

The ACRF49 System-on-Module (SoM) integrates AMD/Xilinx Zynq™ UltraScale+™ RFSoC ZU49DR with high-speed DDR4 SDRAM, dual 512Mbit Quad-SPI Flash chips, and essential peripherals, forming a complete embedded processing platform for high-performance RF applications.


Applications

  • ● 5G RF applications

  • ● phased array system

  • ● Radar system

  • ● Software Defined Radio (SDR)

  • ● spectrum monitoring



Key Features

  • ● AMD/Xilinx Zynq™ Ultrascale+™ RFSoC ZU49DR:
    ◆ ARM® quad-core Cortex™-A53 up to 1.333GHz
    ◆ ARM® dual-core Cortex™-R5F up to 533MHz
    ◆ 16nm FinFET+ FPGA fabric
    ◆ 16x 14-bit RF-ADC, up to 2.5GSPS
    ◆ 16x 14-bit RF-DAC, up to 9.85GSPS

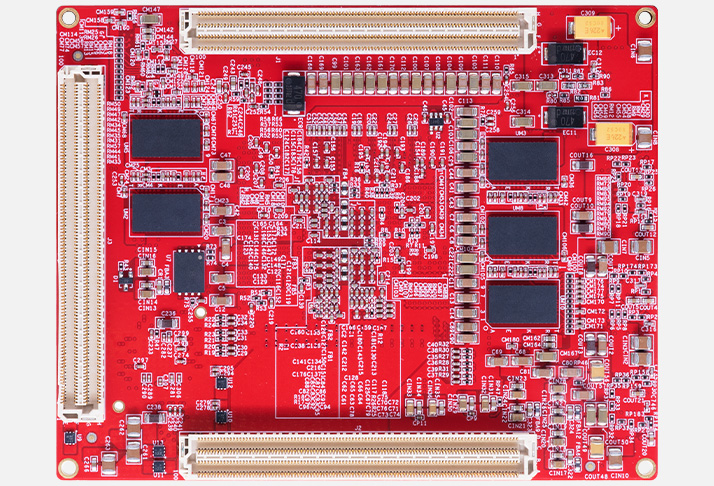

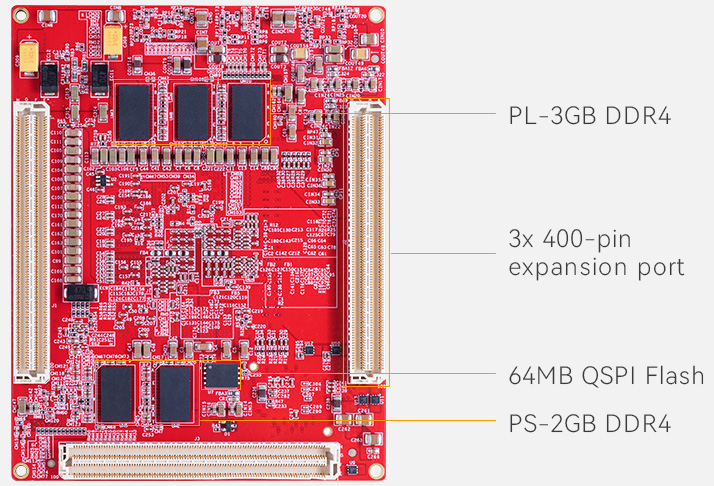

    ● Pluggable module with 3 x 400Pin board-to-board connectors

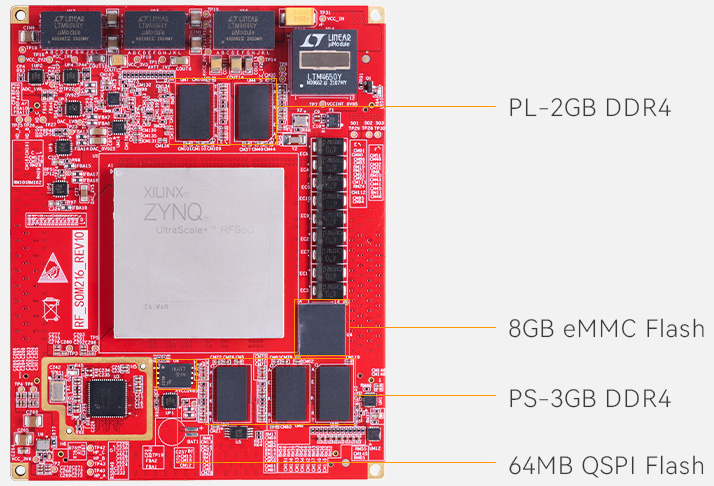

    ● 5 GByte (64-bit with ECC) DDR4 SDRAM on PS
    ● 5 GByte (72-bit) DDR4 SDRAM on PL
    ● 128MB QSPI Flash
  • ● Gigabit transceivers◆ 16 x PL GTY, up to 28.21 Gbps● Work temperature range of -40°C to +85°C
    ● 12V single supply
    ● Dimensions: 120 x 95 mm form factor

Module Features

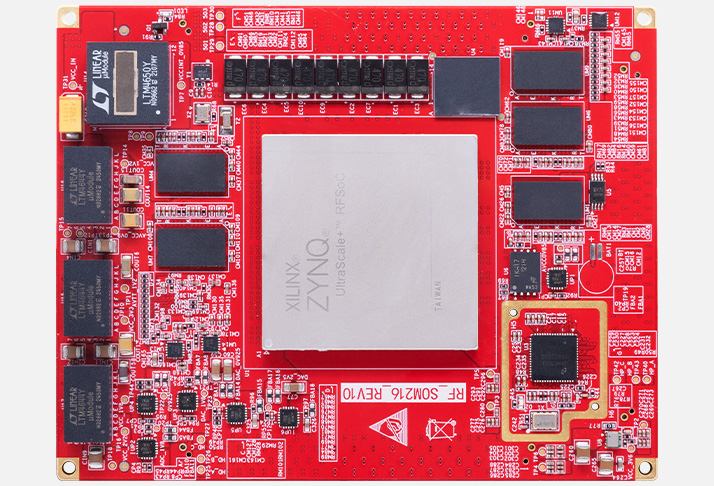

Featuring the AMD/Xilinx Zynq™ UltraScale+™ RFSoC XCZU49DR-2FFVF1760



* We have Zynq™ UltraScale+™ RFSoC development boards AXRF49 that uses this Zynq™ UltraScale+™ RFSoC module, to get started with development straight out of the box.

Please check the Relevant Products at the bottom of the page and click to learn more details.

What's Inside the Box

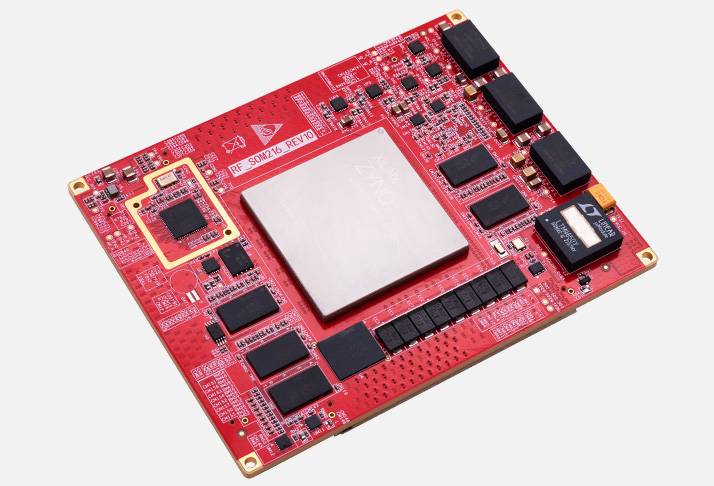

ALINX AMD Xilinx Zynq™ UltraScale+™ RFSoC XCZU49DR System-on-Module/SoM

RFSoC SoM1


Product Matrix

Product ModelPreferred ModelFPGA DevicesDDR4 SDRAM (PS)DDR4 SDRAM (PL)QSPI FlashGTRGTYTemp. RangeUSD Price
ACRF49XCZU49DR-2FFVF17605 GB ECC5 GB128MB416-40°C~+85°C16688


1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.


We offer complete documentations and a lot of demos and tutorials.
Please contact us should you have any need.
