ACW47 SoM with AMD Zynq™ US+ RFSoC XCZU47DR
EIC Product Code: ACW47

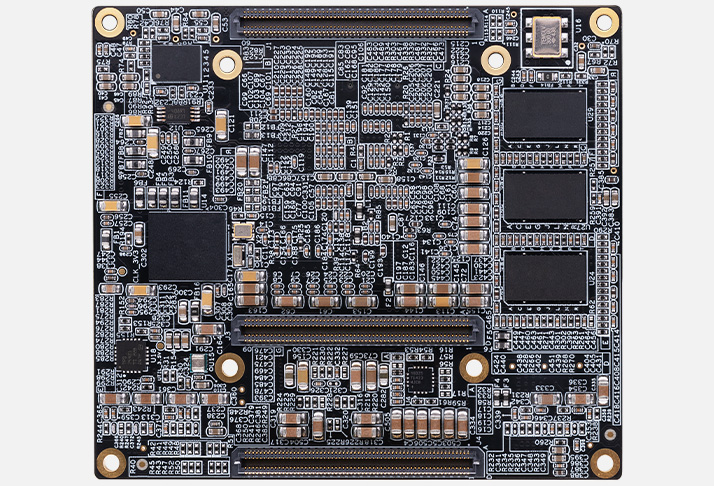

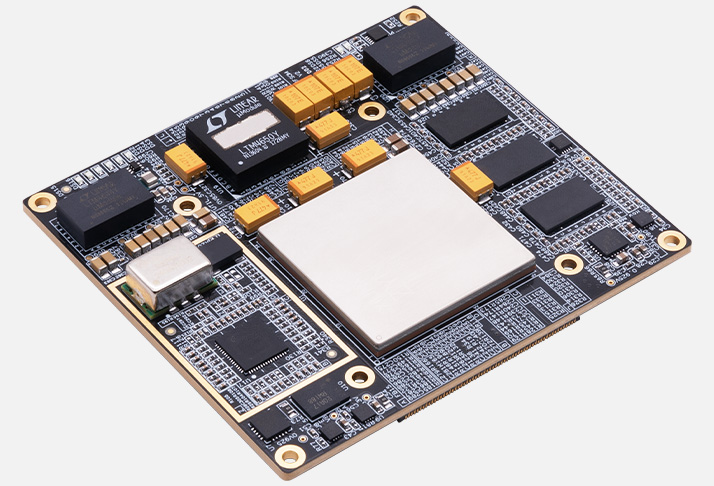

The ACW47 System-on-Module (SoM) integrates AMD/Xilinx Zynq™ UltraScale+™ RFSoC XCZU47DR with high-speed DDR4 SDRAM, dual parallel 1Gbit Quad-SPI Flash, and essential peripherals, forming a complete embedded processing platform for high-performance RF applications.
Product Description
The ACW47 System-on-Module (SoM) integrates AMD/Xilinx Zynq™ UltraScale+™ RFSoC XCZU47DR with high-speed DDR4 SDRAM, dual parallel 1Gbit Quad-SPI Flash, and essential peripherals, forming a complete embedded processing platform for high-performance RF applications.
Applications
● 5G RF and baseband
● phased array system
● Radar system
● Software radio
● Spectrum monitoring
Key Features
- ● AMD/Xilinx Zynq™ Ultrascale+™ RFSoC:
◆ ARM® quad-core Cortex™-A53 up to 1.333GHz
◆ ARM® dual-core Cortex™-R5F up to 533MHz
◆ 16nm FinFET+ FPGA fabric
◆ Digital RF-ADC, RF-DAC● Pluggable module with 3 x 240Pin board-to-board connectors
● 4 GByte (64-bit) DDR4 SDRAM on PS
● 2 GByte (32-bit) DDR4 SDRAM on PL
● 256MB QSPI Flash - ● Gigabit transceivers◆ 8 x PL GTY, up to 28.21 Gbps
◆ 4 x PS-GTR, up to 6 Gbps● 8 x 14bit ADC, up to 5GSPS
● 8 x 14bit DAC, up to 9.85GSPS
● Work temperature range of -40°C to +85°C
● 12V single supply
● Dimensions: 90x80.5mm form factor

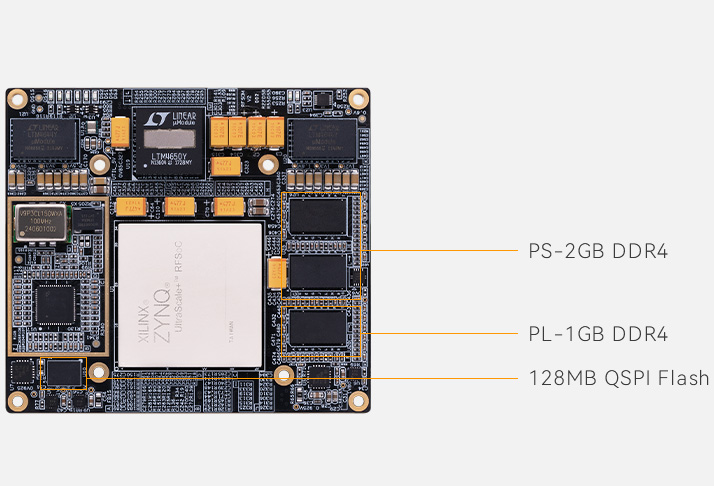

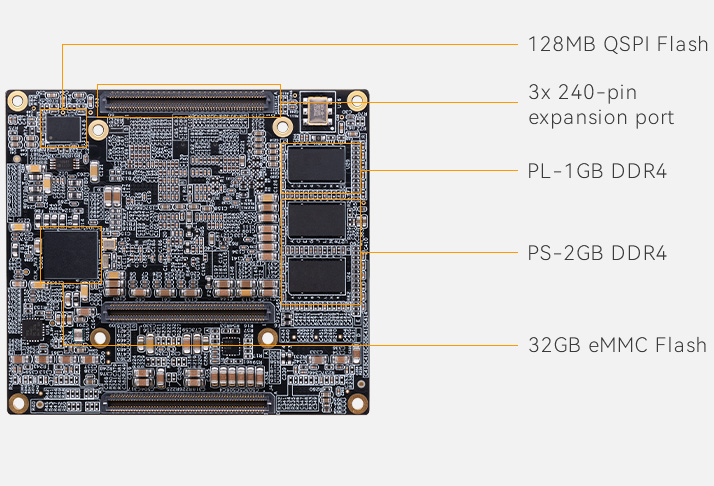

Module Features

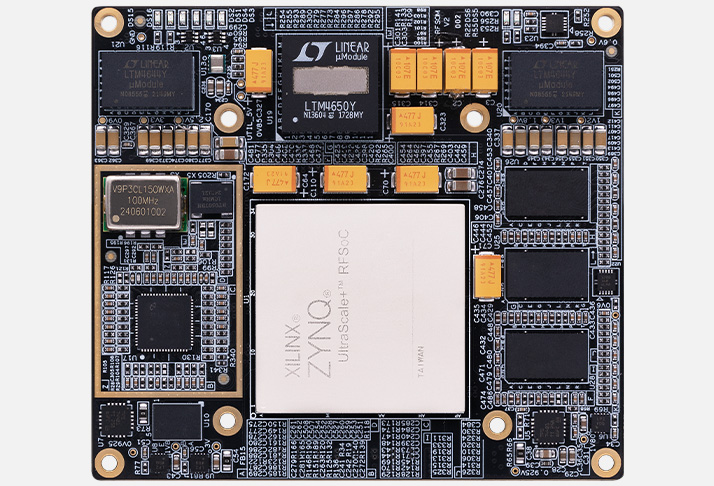

Featuring the AMD/Xilinx Zynq™ UltraScale+™ RFSoC XCZU47DR-2FFVE1156I
* We have Zynq™ UltraScale+™ RFSoC development boards AXW47 that uses this Zynq™ UltraScale+™ RFSoC module, to get started with development straight out of the box.
Please check the Relevant Products at the bottom of the page and click to learn more details.
What's Inside the Box
ALINX AMD Xilinx Zynq™ UltraScale+™ RFSoC XCZU47DR System-on-Module/SoM
| RFSoC SoM | 1 | Heatsink Kit | 1 |
|---|---|---|---|
| Data USB flash drive | 1 |
Product Matrix
| Product Model | Preferred Model | FPGA Devices | DDR4 SDRAM (PS) | DDR4 SDRAM (PL) | QSPI Flash | GTR | GTY | Temp. Range | USD Price |
|---|---|---|---|---|---|---|---|---|---|
| ACW47 | √ | XCZU47DR-2FFVE1156I | 4 GB | 2 GB | 256MB | 4 | 8 | -40°C~+85°C | 4867 |
1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.
We offer complete documentations and a lot of demos and tutorials.
Please contact us should you have any need.
